Mars MC RGBW

MARSMC
MARSMCPE Polar Edition

  • Medium-throw floodlight for medium-sized architectural and landscape lighting installations
  • Max. delivered lm output: 4737 lm / 50 lm/W
  • Remarkably slim profile
  • 15.2" L x 3.7" W x 15.1" H

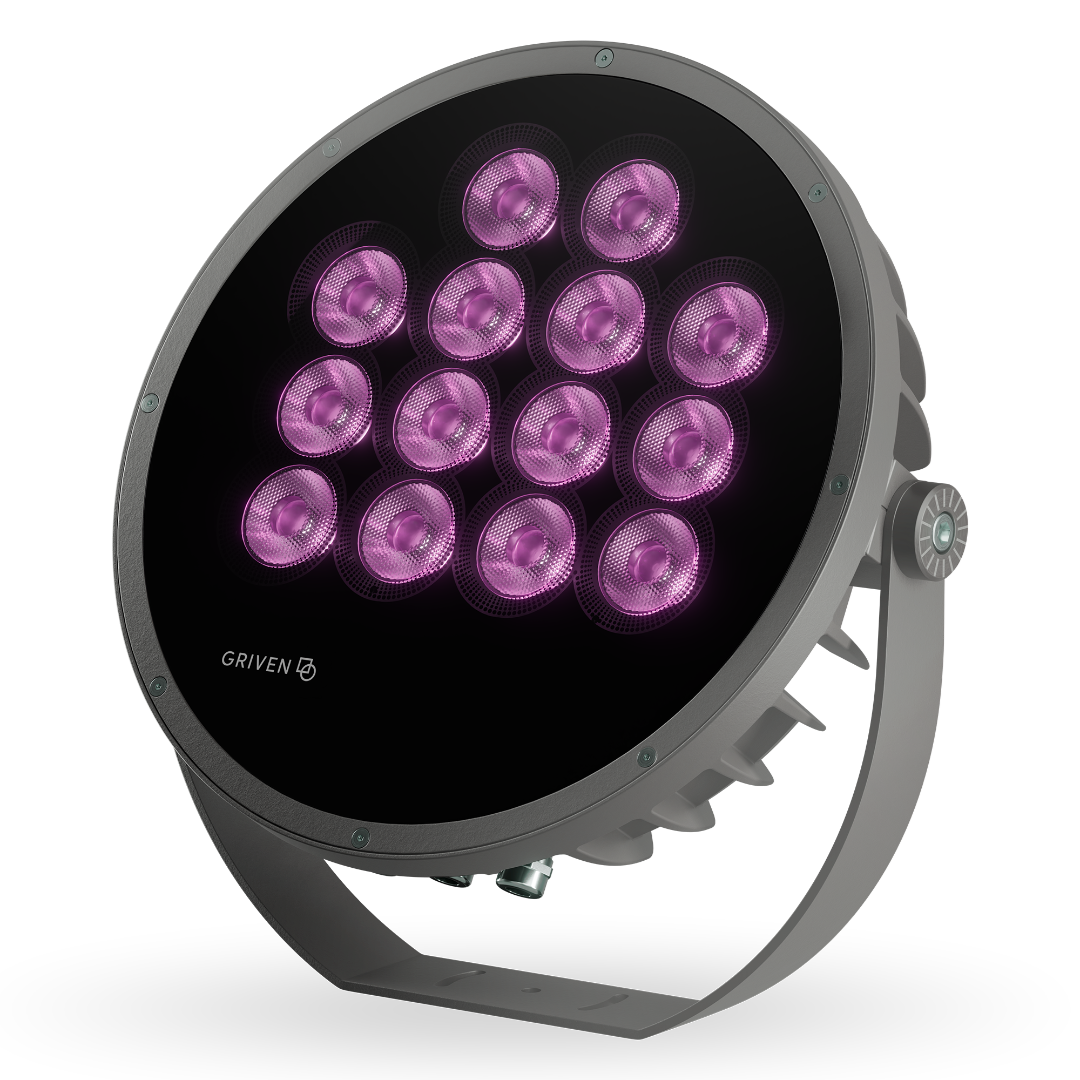

View finishes: Anthracite Grey

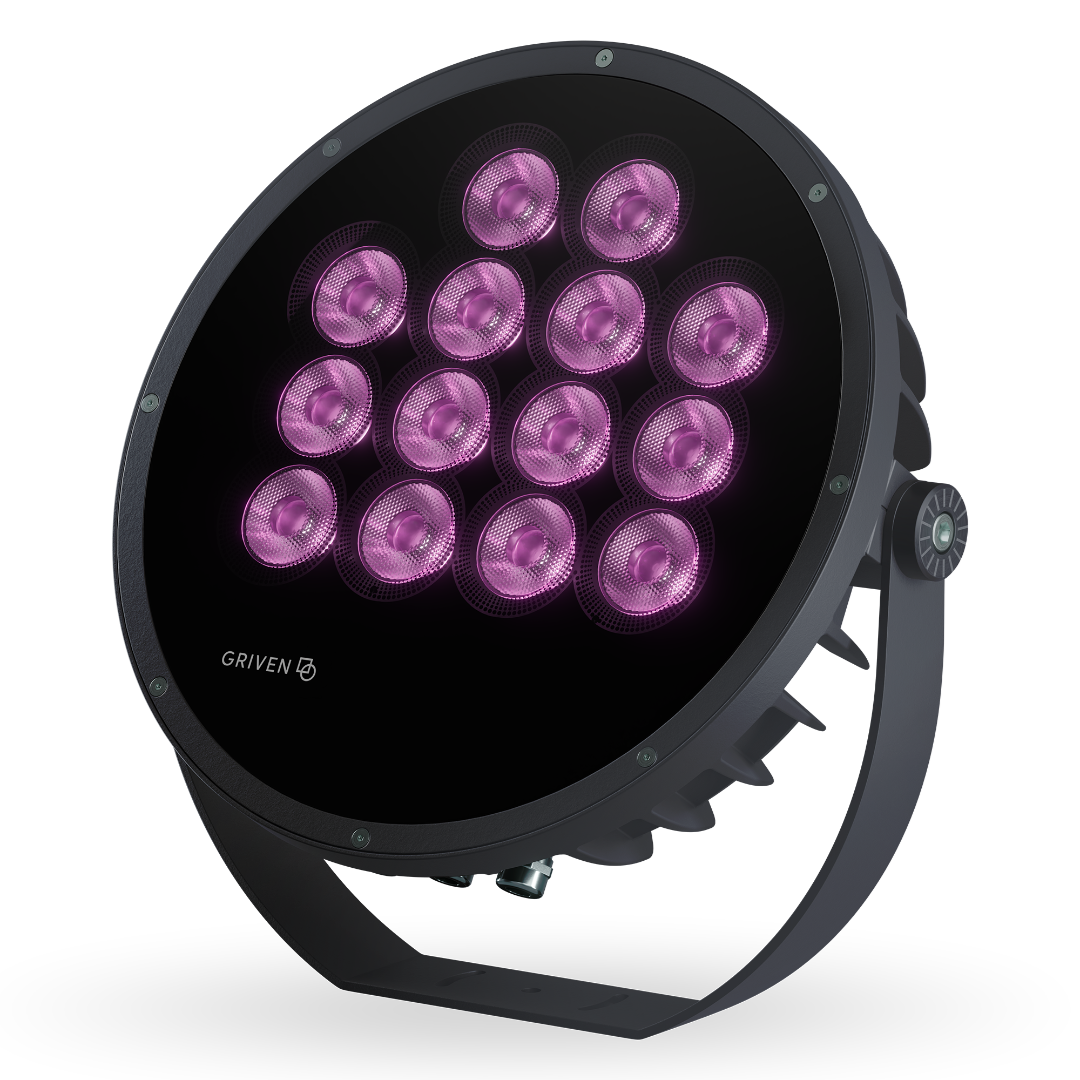

  • Anthracite Grey

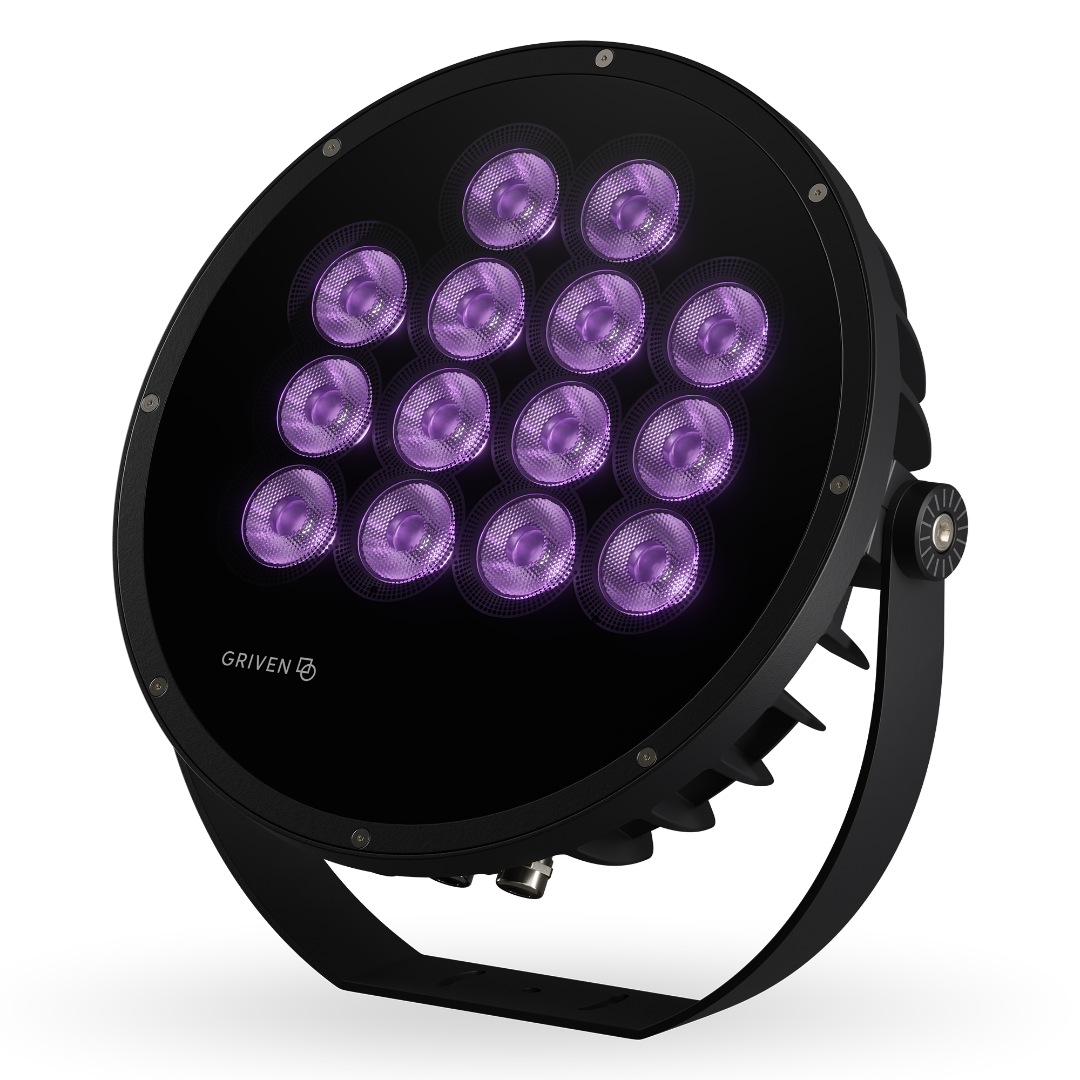

  • Black
  • Griven Silver Grey

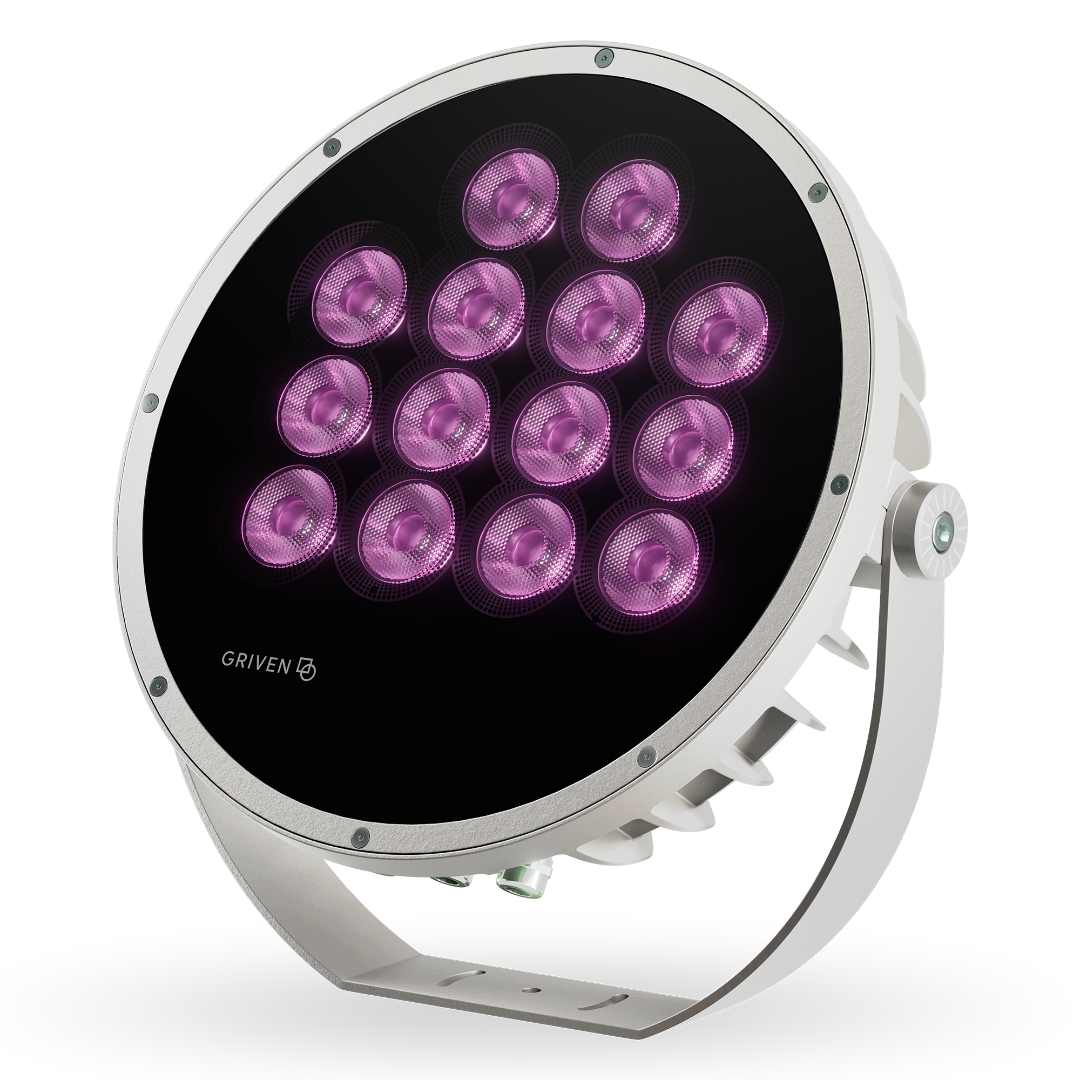

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product
COLOR CHANGING
print

General Features

MARS MC RGBW is configured with multichip LEDs, boasting a unique aesthetic appeal. It incorporates quad-color LEDs to achieve exceptional color blending directly at the lens. The combination of high-performance RGB+W 3000K or 4000K multichip LEDs and unrivaled optical lenses ensures a seamless distribution of light and flawless transition of colors. With its sleek design and remarkably slim profile, MARS MC RGBW effortlessly integrates into any architectural environment, offering a harmonious projection and unparalleled photometric flexibility. This lighting solution is ideally suited for medium-sized architectural and landscape installations. Its versatility is further enhanced by a wide selection of body finishes.
Color configuration
High brightness RGB+W 3000K or 4000K LEDs
Optical configuration
7° SP (Spot)
12° NB (Narrow)
24° MB (Medium)
43° WB (Wide)
Max. Delivered lumen output
Up to 4737 Lumens
Max. lumen/Watt
Up to 50 lm/W
Input voltage
120 - 277V
Amperage
0.79 A @ 120VAC, 0.34 A @ 277VAC
Power consumption
95 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

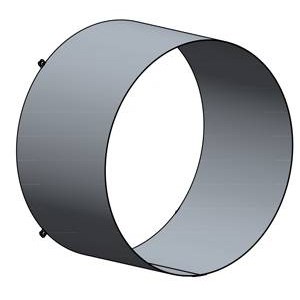

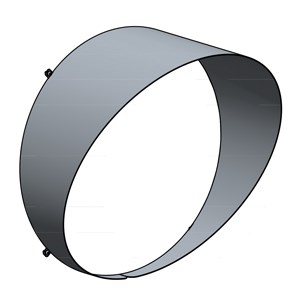

Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility and to be ordered separately.

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • ETL Certified for Wet Locations

Optional Features

  • Optional Polar
